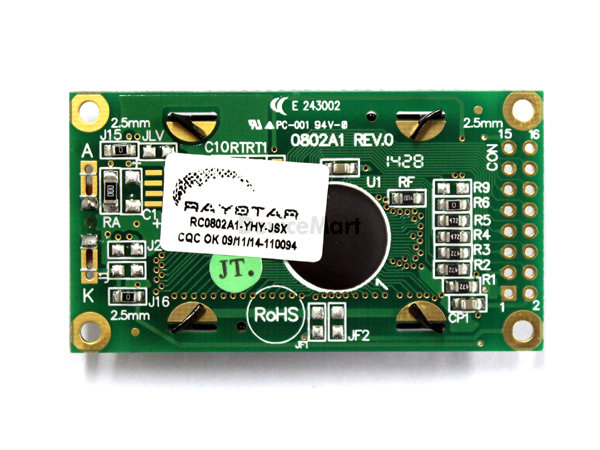

RC0802A1-YHY-JSX

General Specification

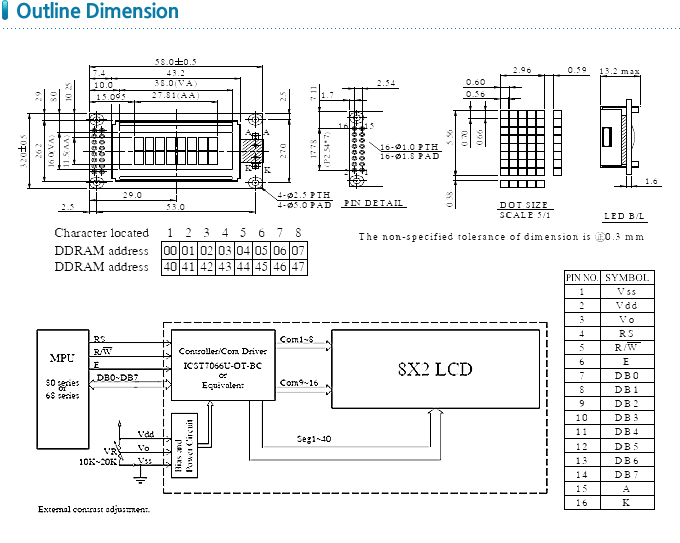

Module dimension: 58.0 x 32.0 x 13.2 (max.) mm3 View area: 38.0 x 16.0 mm2 Active area: 27.81 x 11.5 mm2 Number of Characters: 8 characters x 2 Lines Dot size: 0.56 x 0.66 mm2 Dot pitch: 0.60 x 0.70 mm2 Character size: 2.96 x 5.56 mm2 Character pitch: 3.55 x 5.94 mm2 LCD type: STN Positive, Yellow Green, Transflective Duty: 1/16 View direction: 6 o'clock Backlight Type: LED Yellow Green
